| Item Generation | 10G |

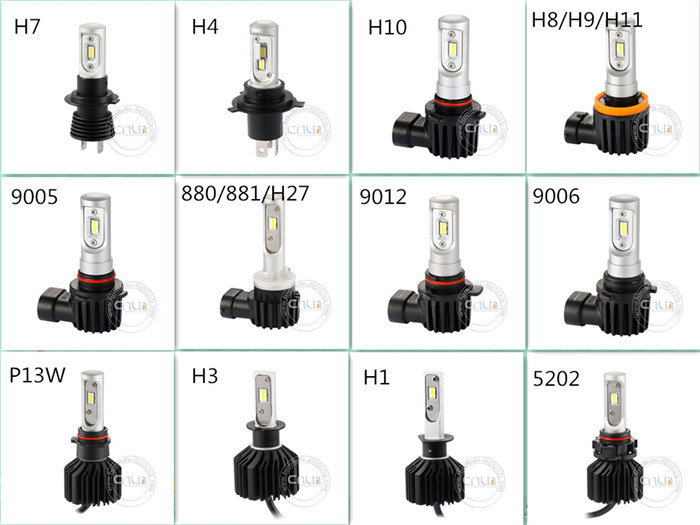

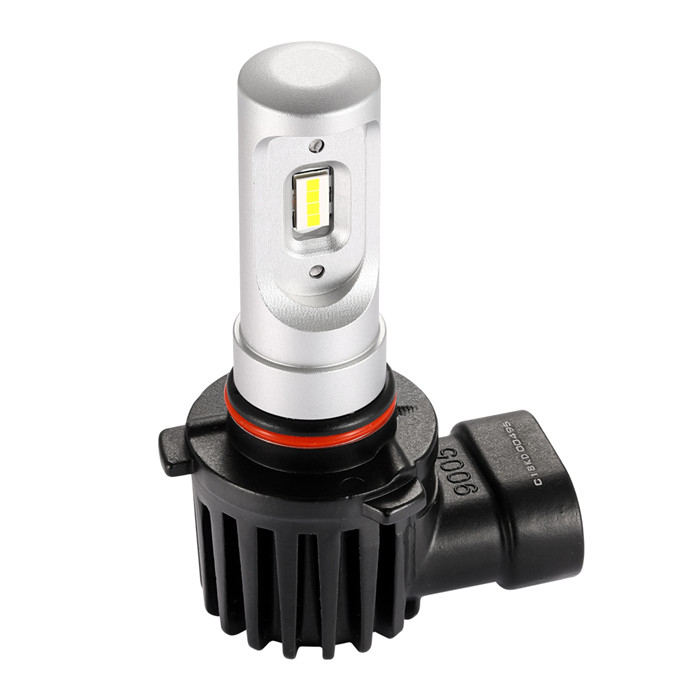

| Single Beam Models | H1 H3 H7 H8 H9 H10 H11 H15 H16 9005 9006 9012 P13W/PSX26 5202/PSX24 |
| Hi Lo Beam Models | H4HILO H13HILO 9004HILO 9007HILO |
| LED Chip Type | 2 * 18W(Single beam);4*18W(Hi Lo Beam) H15 30W+DRL 10W |
| Voltage | DC 8-32V (V-start: 6V) (H13,9004,9007,H15 9-32V) |
| Current | 1.299A-DC13.5V, |
| Operating Power | 17.5365W |
| Lumen | 3600LM |
| Color Temp | 5700K |
| Working Temp | -45°C~+85 °C |
| Chip working temp | -40°C~+120 °C |
| Protection Function | Reverse polarity protection |
| Life Span | >10000 hours |
| Remarks | Anti-EMI(anti-electromagnetic interference): S95/54/EC |
Feature
1. Same size of luminous focus as standard halogen bulbs
2. Standard light beam pattern, type of anti-glare
3. Standard light cutting line and high brightness
4. Perfect light beam pattern, no glare;
5. Form effective lighting upgrade 200%;
6. Plug and play, non-destructive & fast installation;
7. Small body, it can fit all cars
8. CANBUS no error for 99% of new cars
9. It can use in 12V and 24V
10. Long life and less defetive rate
11. 360 degree adjust
12. Practical and patented technology;
Aging test
Each order, we need to take aging testing for at least 12 hours
In 85 degree high tempretature aging test
Installation
1.360° Beam Angel Adjusttable
There are some cars need to adjust the beam angle for providing
better lighting pattern, Unique adapter ring can provide
360°adjuatable angle
2.Lighting Beam adjust steps
Some cars need to adjust the beam angle for providing better
lighting pattern, please follow the below steps to adjust the
rotating ring.
Step-1
If the stop of the existing halogen lamps is vertically up and
down, it is no need to adjust. Otherwire, please follow the below
steps to adjust the installation angle of rotating.
Step-2
Use the allen key to loosen the screws of the rotating ring and
then install the led bulb.
Step-3:
Trun bulb body until the LED burner is aligned vertically in the
reflector, and shining to the left and right sides of the refector.
Check the angle on rotating ring from the front, take out the scews
on rotating right.
Step-4:
Install the LED bulb again for final check, the low beam should
finally shine with the clear bright-dark cut-off line. This is
meant to reduce glare lighting to other drivers.
More item pictures
Add " more pictures" here
And we can also USE PHILIPS ZES led chip
add"philips zes show" picture here
Warranty & Return
1. We are honest supplier, we sure each item was tested before
shipping, werespect every client, hope can get your respect at the
same time.
2. lf product confirm that is manufacturer defect ,we will send the
brand newreplacement bulb to you without any extra fee within б
months ;After 6 monthsthe new replacement bulb still can be got
,but need you pay the shipping costs.
3. All led bulbs have 12 months warranty from our store.If meet any
problem whenyou received it ,please feel free to contact us.
Shipping Details
1. We will ship out the parcel within 2 business days once your
payment has beenconfirm by Aliexpress.
2. In most countries, you can get the items within 7 to 20 business
days .Somecountries such as Russia Brazil ,or some European
countries may take up to30 to 45business days or longer for
delivery.
3. lf you didn't received your shipment within 60 days from
delivery ,please contactus. We will track the shipment and reply
you as soon as possible.
Payment
1. We accept all payment methods that listed by Aliexpress
2. Before placing your order , please confirm details with us if
you have request onitems
3. We will deliver the goods to you according to the address that
you wrote onAliexpress. lf you want to change, please cancel the
old order and place it again forthe new address .
4. Import taxes or duties are not included in the item price,
buyers are responsiblefor any duty/ taxes charged by their local
customs. To ensure that the item are taxfree upon import, we will
declare it as a Gift if possible ,and Each parcel will bedeclared
value $5,if you need us in a lower declare value, please leave us
amessage in the order.
Packaging & Delivery
Selling Units:Single item
Single package size: 15X15X15 cm
Single gross weight:0.001 kg
